Stud welding torch guard

Introduction Device Industry Point Solution Process Material Advantage Detail Protective Case

product / 02

Stud welding torch guard

It is made of flame-retardant halogen-free coating fabric and other flame-retardant auxiliary materials.
It can prevent the main body and circuit of stud welding gun from being damaged by high temperature welding slag, and has the characteristics of full body flame retardant, anti welding slag splashing, high temperature resistance, wear resistance and so on.
It can be used in automobile manufacturing enterprises, such as body (welding) workshop, ship manufacturing and other industries using stud welding gun. It can be customized for various models of various brands.

Anti splash
High temperature resistance
Flame retardant
Oil repellent

Application Type

1

2

Application industry

Automobile manufacturing

Shipbuilding
Sheet metal processing
Electronics industry
Communication Equipment
Instrument and electrical appliance
Spare parts

User pain point

Existing Problems

High temperature welding slag

Welding slag accumulation

Spatter of welding slag

noise
User loss

Aging of welding torch

line down

High maintenance costs

Hidden danger

solution

Product development process

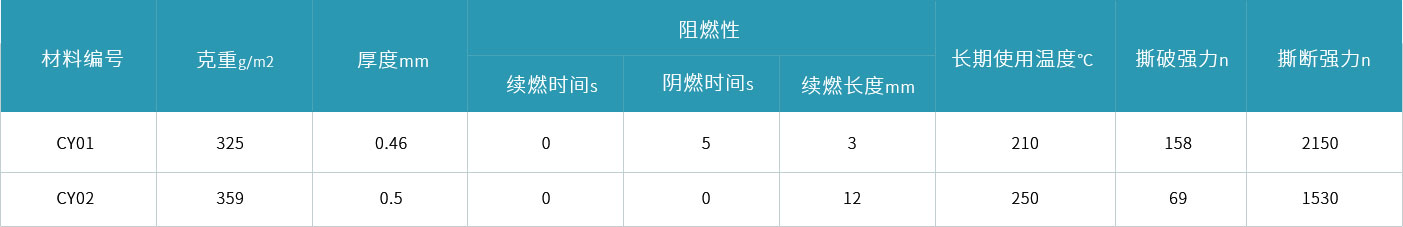

Material parameters

High performance flame retardant fabric

We independently developed a number of flame-retardant metal coating fabrics with different prices for customers with different budgets. The flame-retardant properties have reached B1 level. The base cloth is flame-retardant fiber, high temperature resistance, high specific strength and good bending resistance, which can withstand more than 10000 times of friction and meet the high frequency working strength of welding gun. Halogen free metal coating is oil repellent and meets ROHS standard.
High performance flame retardant rubber sheet

The patented material developed independently, including base cloth and double-sided dip adhesive, can effectively reduce the impact of welding slag splashing, reduce welding slag accumulation, and achieve the flame retardant level of V-0.
Flame retardant Velcro

The flammability of the buckle burr is up to Class B1, and the tear resistance is good.
Flame retardant sewing thread

The suture is made of Kevlar 1414 fiber, which has high strength and good toughness, and the ultimate oxygen index is more than 28. It can effectively enhance the suture strength and the flame retardancy of the suture.


Design advantage

Digital remote design

No field measurement required
High precision design

Short supply cycle
Only 2D & 3D digital analog, on-site video and pipeline trend are required.

Product details

Flame retardant rubber sheet

Flame retardant rubber plate is added at the arm of welding gun to effectively resist the front impact of welding slag.
Tail button

Add the daughter and mother buttons at the tail of the welding gun to facilitate the fixation of the protective cover and prevent the welding slag from entering the gun body

Protective effect

We grow together with welding gun enterprises to provide customers with high-quality products and services
Spring Rain Protection Inspiration has become a leading domestic and internationally competitive protection product company.

Protection function

Effective flame retardancy

Reduce welding slag accumulation

Release the impact of splashing
Product value

Prolong the service life of welding gun

Reduce line stopping rate

Reduce maintenance costs

Successful case

After continuous upgrading and upgrading, stud welding gun protective cover has been widely used in various automobile manufacturing workshops and welding gun users, such as SAIC Volkswagen, SAIC General Motors, BYD, etc., with constant praise from customers.

SAIC Volkswagen branch

BYD branch
