Sandblasting robot protective clothing
Introduction Device Industry Point Solution Process Material Advantage Detail Protective Case
product / 02
Sandblasting robot protective clothing

The product is made of high density impregnated composite material and hot-pressing sealant technology.
It has good airproof, dustproof, impact resistance, high strength and wear resistance, and can withstand the impact of high-speed pellet/grinding sand with a speed of 200 m/s.
It is applied to pre-treatment of electroplating, cleaning of workpieces in foundry, stamping and welding workshops, grinding and polishing workplaces in glass manufacturing and finishing workshops.



  • Impact resistance
  • High strength
  • Dustproof
  • Wear resistance
Application Type
1
2
Application industry
Grinding and polishing
  • Metal Fine Processing
  • Parts processing
  • Glass manufacturing
  • Electroplating process
  • Workpiece cleaning
  • Finishing process
User pain point
  • Existing Problems
    Fast impact speed
    Strong impact
    High impact frequency
    Multidirectional impact
  • User loss
    Robot damage
    Workpiece Damage
    High quality product rate
    High maintenance cost
solution

Product development process

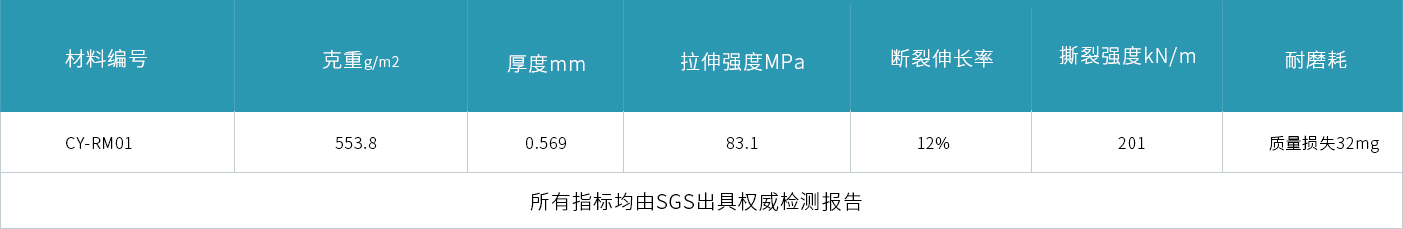

Material parameters
  • High Density Rubber-impregnated Wear-Resistant Composites
    The proprietary patented product, which is made by immersion, gluing and vulcanization process, has the advantages of high strength, wear resistance and tear resistance. It has large thickness and can effectively alleviate the impact of external forces.
  • Flame retardant nylon buckle
    The flame retardant properties of the buckle and burr both reach grade B1 and have good tear resistance.
  • Flame retardant elastic band
    It has good flame retardancy, high strength and elongation ratio of more than 1:2.5. It is not easy to fatigue under the action of external forces for a long time. Flame-retardant sewing thread: The suture is made of aramid 1414 fiber. It has high strength and good toughness. The limiting oxygen index is more than 28. It can effectively enhance the suture strength and flame retardancy of the suture.


Design advantage
Digital remote design
  • No need for field measurement
  • High Precision Design
  • Only 2D & 3D digital analog, on-site video and pipeline trend are required.
  • Short supply cycle
Product details
  • Base hem
    For the base design can cover a large area of skirt pendulum, fully prevent the pills into the base and the joint of the axle, beautiful appearance.
  • Side seam nylon buckle
    It extends along the side of the robot to facilitate the wearing and tearing of protective clothing.
  • Pipeline suspension buckle and pendulum elastic belt
    Pipeline suspension buckle is added around the arm to fix the pipeline in all directions. A ring of elastic belt is arranged on the hem to fix the protective clothing and prevent the pellets from entering the inside of the robot.
  • Radial elastic band
    Setting multi-channel elastic band in the position where the robot has a larger motion range can help the protective clothing to match the rotation range of the robot by self-expansion without interference.
Protective effect
High quality + safe Escort + intimate service = spring rain protection
Spring Rain Protection Inspiration has become a leading domestic and internationally competitive protection product company.
  • Protection function
    Slow down the impact of shot
    Prevent rebound of shot material
    Preventing pill stuck in equipment
  • Product value
    Extending Service Life of Equipment
    Improving Production Quality
    Reduce maintenance costs
Successful case
Sandblasting robot protective clothing has been widely used in metal finishing, electroplating, glass manufacturing and other grinding and polishing workshops, such as: Meiji Baitong, Gu Hi-tech, Rilleyburg, Bolikota, Central Electrical and Mechanical Enterprises, customer satisfaction is high, product reputation is good.
Ruilaibao
Central Electrical and Mechanical
Meizhi Bai Tong
