Robot high temperature protective clothing
Introduction Device Industry Point Solution Process Material Advantage Detail Protective Case
product / 01
Robot high temperature protective clothing

It is made of high quality coated or impregnated composite materials with high temperature resistance, high strength and wear resistance, and adopts single or double layer material structure.
The product can play the role of heat radiation resistance and Spatter Resistance of high temperature molten metal for a long time under the high temperature environment of different grades at 200-1000 C.
It is mainly used in high temperature operation fields such as steelmaking, casting, forging and die manufacturing.

  • Flame retardant
  • High temperature resistance
  • Anti splash
  • High strength
Application Type
Six-axis pick-up robot
Six-Axis Injection Mold Releasing Agent Robot
Application industry
Metalworking
  • Smelting industry
  • Automobile manufacturing
  • Sheet metal processing
  • Steel plant
  • Spare parts
  • Glass manufacturing
User pain point
  • Existing Problems
    Strong heat source
    High heat radiation
    Metal splash
    High heat contact
  • User loss
    Robot aging
    Equipment failure
    Decreased quality of work
    High maintenance cost
solution

Product development process

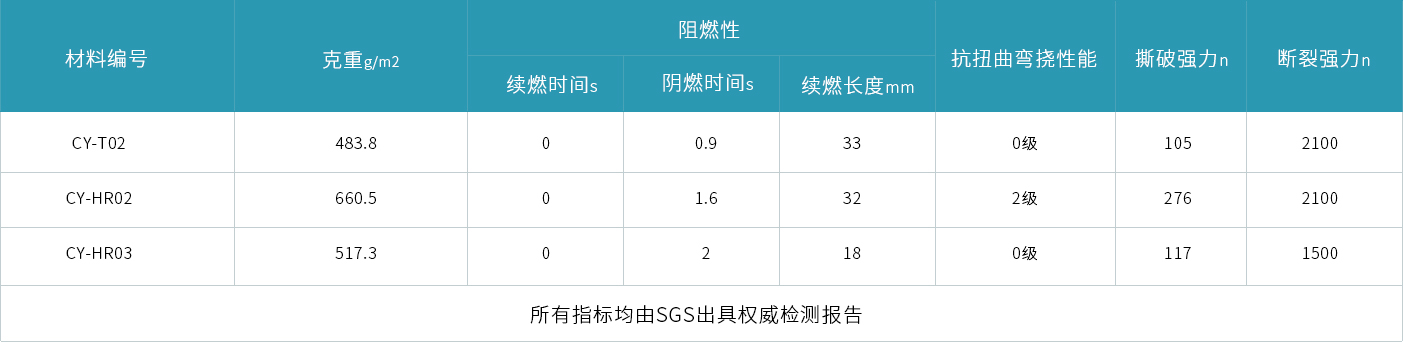

Material parameters
  • Imported High Temperature Resistant Coating Materials
    Through independent research and development and import, we have developed a variety of high temperature resistant coating materials. The base cloth is a high temperature resistant material with a duration of 0 seconds. It has good anti-twist and flexural performance and can meet the repetitive work of the robot at high frequencies without damage. Advanced coating technology, good heat reflection, long service life in high temperature environment.
  • Flame retardant nylon buckle
    The flame retardant properties of the buckle and burr both reach grade B1 and have good tear resistance.
  • Flame retardant elastic band
    It has good flame retardancy, high strength and elongation ratio of more than 1:2.5. It is not easy to fatigue under the action of external forces for a long time. Flame-retardant sewing thread: The suture is made of aramid 1414 fiber. It has high strength and good toughness. The limiting oxygen index is more than 28. It can effectively enhance the suture strength and flame retardancy of the suture.


Design advantage
Digital remote design
  • No need for field measurement
  • High Precision Design
  • Simply provide 2D & 3D digital and analog, live video and pipeline direction
  • Short supply cycle
Product details
  • Accordion fold
    Setting the organ pleats at the position where the robot has a large range of motion is helpful for the protective clothing to match the rotation range of the robot through self expansion.
  • Conical outlet
    A conical structure is added at the back of the base to facilitate the pulling out of the pipeline from the inside of the protective clothing.
  • Pipeline suspension buckle
    A pipeline hanging buckle is added at the lower end of the arm to facilitate the fixation of the pipeline.
  • Multiple elastic bands
    The lower part and the main part are provided with multi-channel elastic belt, which is not only conducive to the fixation of protective clothing, but also fully meets the robot's motion space.
Protective effect
High quality + safe Escort + intimate service = spring rain protection
Spring Rain Protection Inspiration has become a leading domestic and internationally competitive protection product company.
  • Protection function
    Insulating radiation
    Isolate metal splash
    Instantaneous strong thermal contact resistance
  • Product value
    Extending Service Life of Equipment
    Reduce shutdown rate
    Reducing Maintenance Cost
Successful case
Robot high temperature protective clothing has been widely used in metal processing, shipbuilding and other industries, customer satisfaction as high as 99%, such as: China Shipping Heavy Industry Pengli, Shanghai Soluxin Automation, Chongqing Dajiang Merrixin Die Casting, Shenyang Ruike, Liaoning Sanyou and other large enterprises.
Shenyang Rui Ke
ZhongShip Heavy Industry Pengli
Liaoning three friends
